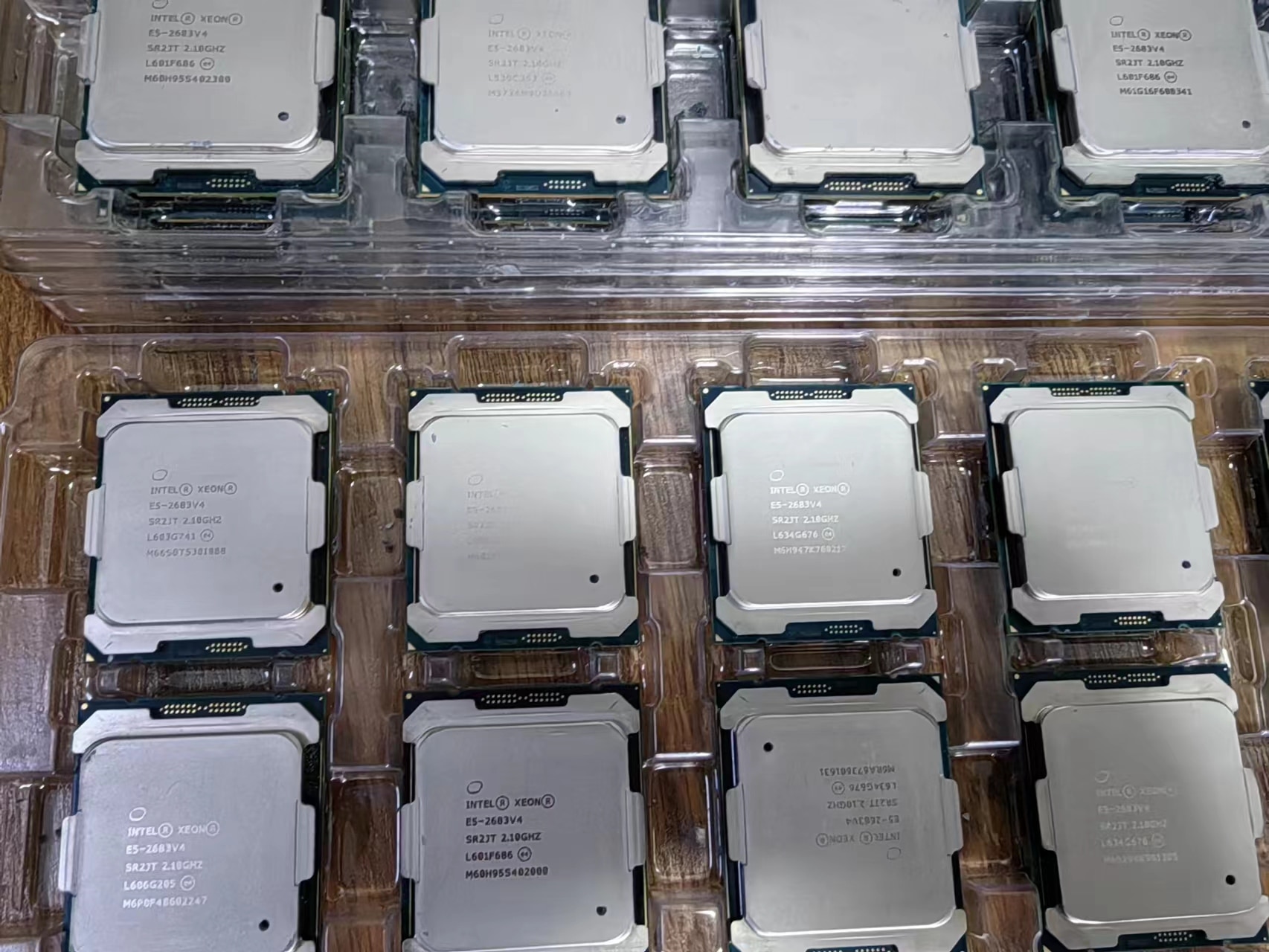

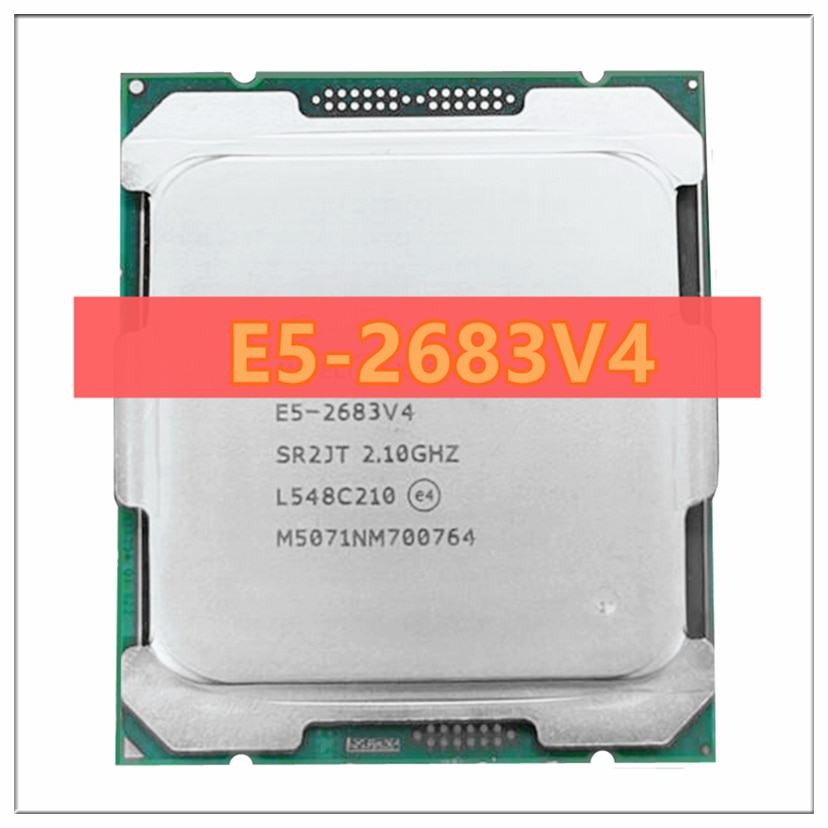

Xeon E5 2683 V4 SR2JT 2.1GHz 16-Cores 40M LGA2011-3 E5 2683V4 processor cpu

General information

Type

Market segment

Server

Family

Model number

CPU part numbers

• CM8066002023604is an OEM/tray microprocessor

• BX80660E52683V4is a boxed microprocessor

Frequency

2100 MHz

Maximum turbo frequency

3000 MHz

Bus speed

9.6 GT/s QPI (4800 MHz)

Clock multiplier

21

Package

2011-land Flip-Chip Land Grid Array

Socket

Socket 2011-3 / R3 / LGA2011-3

Size

2.07″ x 2.01″ / 5.25cm x 5.1cm

Introduction date

Price at introduction

$1846

S-spec numbers

Architecture / Microarchitecture

Microarchitecture

Broadwell

Platform

Grantley-EP 2S

Processor core

Broadwell-EP

Core stepping

B0 (QK7K, SR2JT)

CPUID

406F1 (QK7K)

Manufacturing process

0.014 micron

Data width

64 bit

The number of CPU cores

16

The number of threads

32

Floating Point Unit

Integrated

Level 1 cache size

16 x 32 KB 8-way set associative instruction caches
16 x 32 KB 8-way set associative data caches

Level 2 cache size

16 x 256 KB 8-way set associative caches

Level 3 cache size

40 MB 20-way set associative shared cache

Physical memory

1536 GB

Multiprocessing

Up to 2 processors

Extensions and Technologies

• MMX instructions

• SSE / Streaming SIMD Extensions

• SSE2 / Streaming SIMD Extensions 2

• SSE3 / Streaming SIMD Extensions 3

• SSSE3 / Supplemental Streaming SIMD Extensions 3

• SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4

• AES / Advanced Encryption Standard instructions

• AVX / Advanced Vector Extensions

• AVX2 / Advanced Vector Extensions 2.0

• BMI / BMI1 + BMI2 / Bit Manipulation instructions

• F16C / 16-bit Floating-Point conversion instructions

• FMA3 / 3-operand Fused Multiply-Add instructions

• EM64T / Extended Memory 64 technology / 64

• HT / Hyper-Threading technology

• VT-x / Virtualization technology

• VT-d / Virtualization for directed I/O

• TBT 2.0 / Turbo Boost technology 2.0

• TSX / Transactional Synchronization Extensions

Security Features

• NX / XD / Execute disable bit

• TXT / Trusted Execution technology

• SMAP / Supervisor Mode Access Prevention

• SMEP / Secure Mode Execution Protection

Low power features

• Enhanced SpeedStep technology

Integrated peripherals / components

Integrated graphics

None

Memory controller

The number of controllers: 1
Memory channels: 4
Supported memory: DDR4-1600, DDR4-1866, DDR4-2133, DDR4-2400
Maximum memory bandwidth (GB/s): 76.8
ECC supported: Yes

Other peripherals

• Direct Media Interface 2.0

• Quick Path Interconnect (2 links)

• PCI Express 3.0 interface (40 lanes)

Electrical / Thermal parameters

Maximum operating temperature

84°C

Minimum power dissipation

45 Watt (C1E state)
14 Watt (C6 state)

Thermal Design Power

120 Watt
